Paper/Picture 2 DXF 3.0

(~1500 Kb) $49

Convert CAD drawings from paper sheets or pictures into digital DXF files for editing in your CAD application.

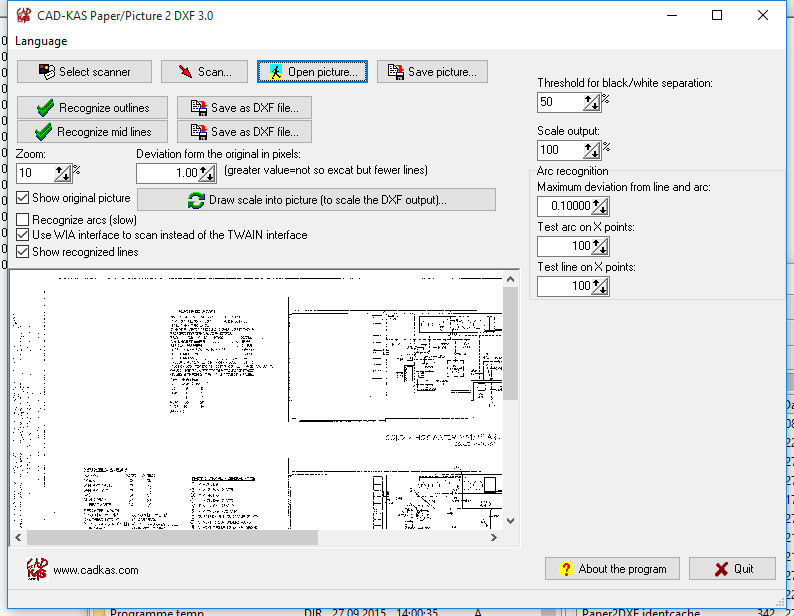

Scan a drawing or open a picture from your hard disk. The program recognizes the lines and saves the result as a DXF file.

It first converts the image into a black and white image. You see a color histogram so you can see where to set the threshold to decide if a color should be threaded as black or white.

Outlines

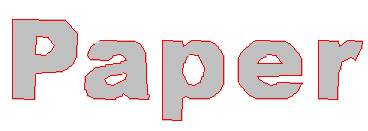

Our program can recognize the outlines of an area:

Center lines/Mid lines

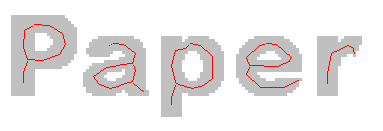

But it can also recognize the center lines/mid lines:

This saves much of time and money if you need to import paper drawings into your CAD application.

Download the free trial version

Order full version for $49

To vectorize a picture manually you can use our program Trace and vectorize 1.0.
To extract the lines from a pdf file you can use PDF 2 DXF.

To do get a level view of a drawing on a photo and convert it to DXF you can use Photogrammetric image rectification.

Paper/Picture 2 DXF has been awarded with the 5 stars award by software directory www.daolnwod.com.
